Hyosung Mainboard Identification Guide >

Hyosung Mainboard Identification Guide

Review the different Hyosung mainboards below

WinCE 7.0 Mainboard

WinCE 7.0 Mainboard

Part Number: S7650000289; S7650000052

Compatible ATM Models: 1800SE; 2700; 2700T; Halo (2600); Halo-S; Halo II (2600SE); 4000W; Force (2800SE); 2800T; 1500SE; 5000SE; 5200SE; 5300SE

Began shipping early 2022

WinCE 6.0 Mainboard

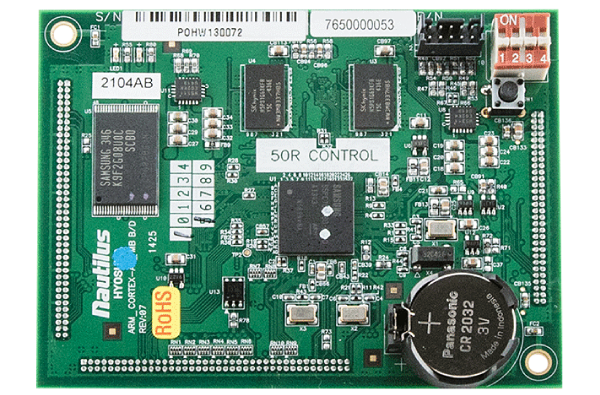

WinCE 6.0 Mainboard

Part Number: S7650000053

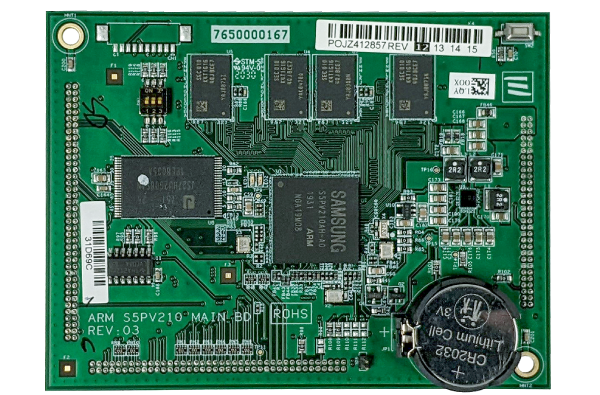

WinCE 6.0 Mainboard

Part Number: S7650000167 (new revision)

Compatible ATM Models: 1800SE; 2700; 2700T; Halo (2600); Halo-S; Halo II (2600SE); 4000W; Force (2800SE); 2800T; 1500SE; 5000SE; 5200SE; 5300SE

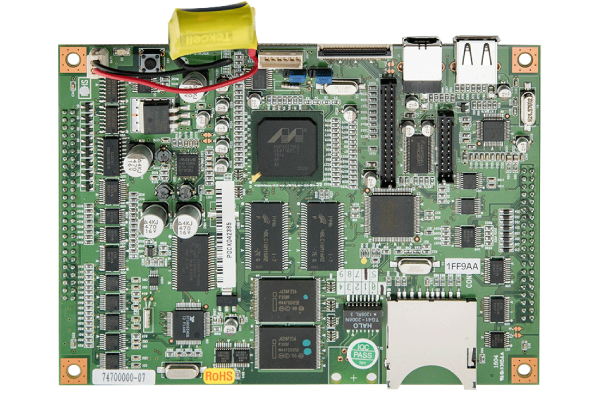

WinCE 5.0 Mainboard

WinCE 5.0 Mainboard

Part Number: S7470000007

Compatible ATM Models: 1800CE; 5000CE; 5050CE; 5300CE

×
×
×
×
Read Full Guide Here

Full Details Below

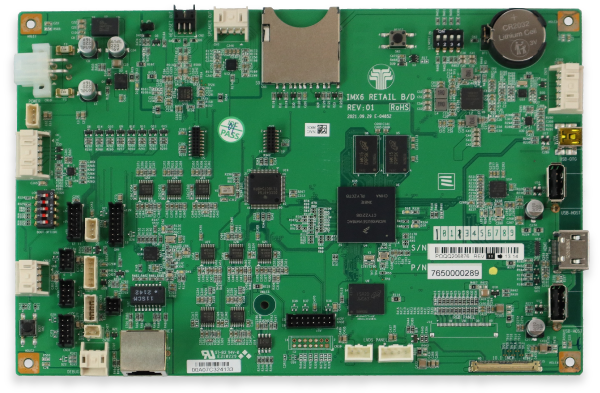

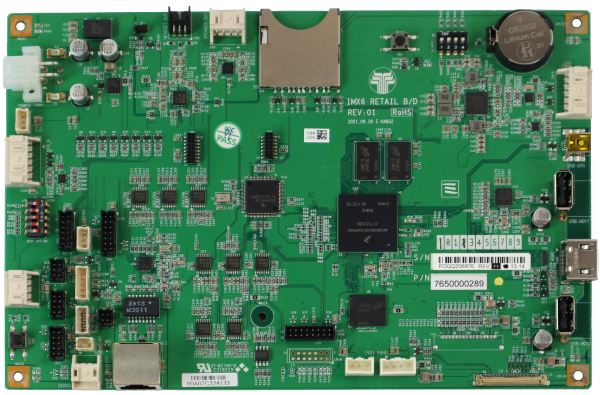

WinCE 7.0 Mainboard

Approximate Size: 8.25" x 5.5"

This mainboard was introduced in 2022 and is now integrated with the I/O board, making it much larger than the previous WinCE 6.0 board. It includes three USB ports along the right-hand side as well as 'Reset' and 'Diagnostics/Boot Menu' Buttons.

Compatible ATM Models: 1800SE; 2700; 2700T; Halo (2600); Halo-S; Halo II (2600SE); 4000W; Force (2800SE); 2800T; 1500SE; 5000SE; 5200SE; 5300SE

Part Number: S7650000289; S7650000052 (for use with ATMs w/ Touch Function Keys)

OS Version: v10.11.10 | B-L Version: v10.02.10

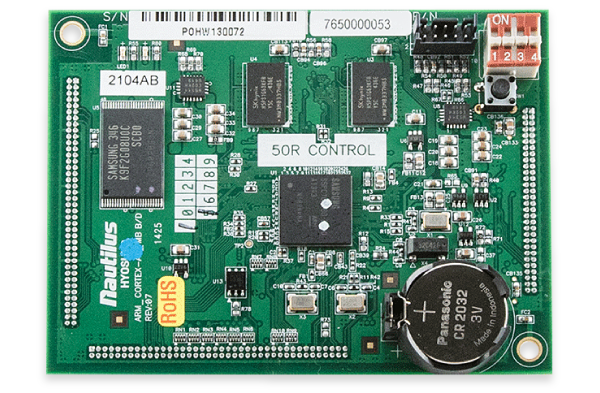

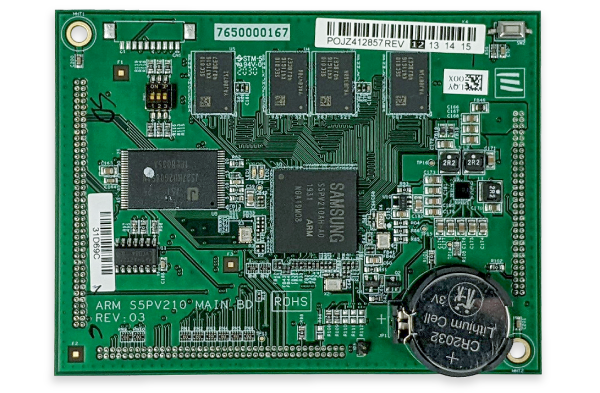

WinCE 6.0 Mainboard

Approximate Size: 4.0" x 3.0"

This mainboard was introduced initially for the “SE” line of Hyosung machines. Unlike the previous WinCE 5.0 Mainboard, it is much smaller in size and utilizes a 3V coin-style battery to store NVRAM. It is inserted into the upper right-hand quadrant of the larger I/O Board.

Compatible ATM Models: 1800SE; 2700; 2700T; Halo (2600); Halo-S; Halo II (2600SE); 4000W; Force (2800SE); 2800T; 1500SE; 5000SE; 5200SE; 5300SE

Part Number: S7650000053; S7650000167 (new revision)

OS Version: v06.01.19 - v08.01.06 | B-L Version: v06.22.16 - v08.02.04

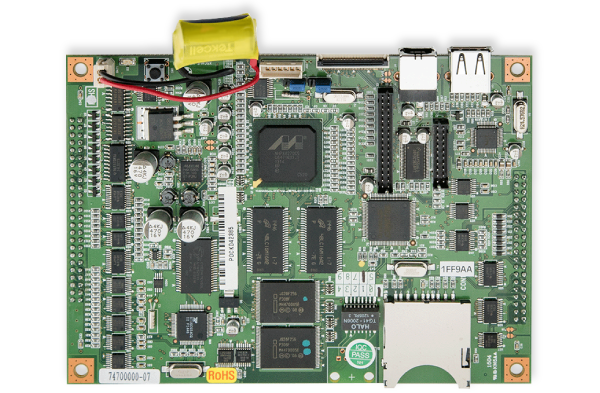

WinCE 5.0 Mainboard

This mainboard was introduced for the “CE” line of Hyosung machines. It includes input ports for the LCD Ribbon Flex Cable, USB Drive and SD Card unlike the later, much smaller WinCE 6.0 Mainboard which passes these ports to its adjoining I/O Board. It also uniquely utilizes a 3.6V barrel-style battery to store NVRAM.

Compatible ATM Models: 1800CE; 5000CE; 5050CE; 5300CE

Part Number: S7470000007

OS Version: v01.13.16 - v01.13.18

Approximate Size: 6.0" x 4.25"

I/O Boards

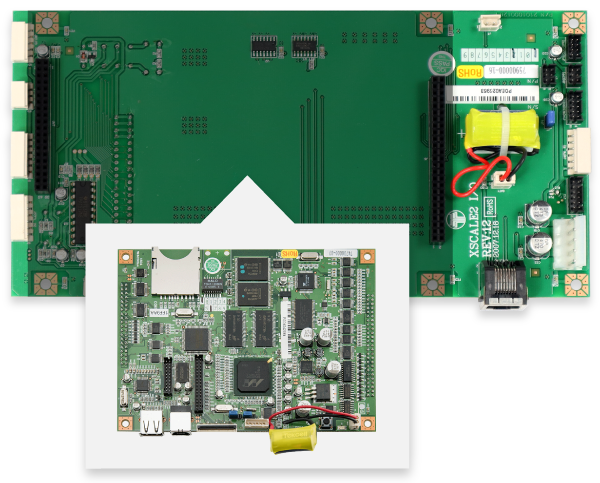

Win5.0 CE Mainboard & I/O Board Assembly

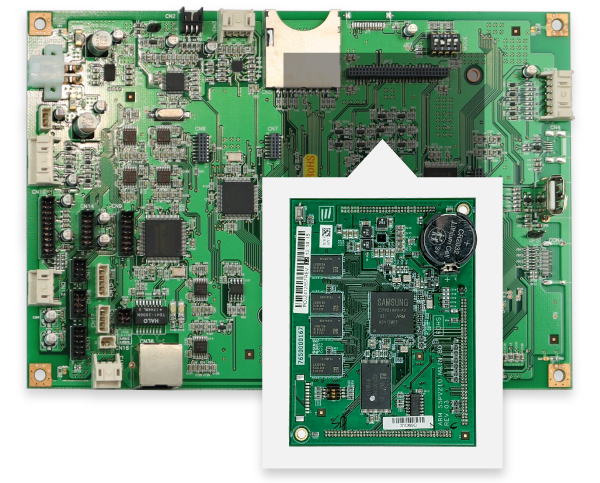

Win6.0 CE Mainboard & I/O Board Assembly
